111 Stratoflex Medium Pressure Hose

Hose Application/Specifications:

111 HOSE:

  • SPECIFICATIONS: hose meets or exceeds the requirements of MIL-H-8794. See information bulletin IB-630 for TSO approvals.
  • CONSTRUCTION: Tube-Seamless synthetic rubber. Reinforcement-One fiber braid and one high tensile steel wire braid. Cover-Fiber braid impregnated with oil and mildew resistant rubber.
  • IDENTIFICATION: Stratoflex name and part number; specification number, size number, quarter and year of manufacture; and federal identification code.
  • APPLICATION: Aircraft hydraulic, pneumatic, coolant, fuel and oil systems specified in MS33620.
  • TEMPERATURE RANGE:

    For Hose Sizes -4 thru-12: -65°F to +250°F (-54°C to +121°C) For Hose Size -16: -48°F to +250°F (-40°C to + 121°C)

124 Stratoflex Medium Pressure Hose

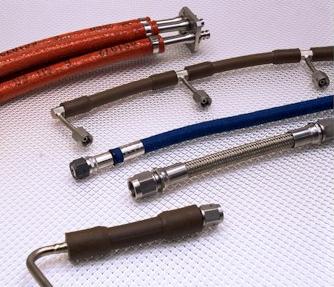

124-6 hose with a 524-6CR fitting attached

Hose Application/Specifications:

124 HOSE:

  • SPECIFICATIONS: Meets or exceeds the requirements of MIL-H-27267 and MIL-H-25579. See information bulletin IB-630 for TSO approvals.
  • CONSTRUCTION: Tube-Extruded tetrafluoroethylene. Reinforcement sizes -3 through -12, one corrosion-resistant steel wire braid. Sizes-16Z through -24Z, two corrosion-resistant steel wire braids.
  • PROOF PRESSURE: Hydrostatic pressure test at twice the rated working pressure, and tested with air underwater at maximum operating pressure.
  • APPLICATION: High-temperature aircraft hydraulic, ballistic, pneumatic, fuels, lube oils, coolants, solvents, and most missile fuels and oxidizers.
  • TEMPERATURE RANGE:

    -65°F to +450°F (-54°C to +232°C)

*Size-3 is not covered by MIL-H-25579 or MIL-H-27267, but manufactured and tested to intent thereof.

124J Stratoflex Medium Pressure

Hose Application/Specifications:

124 HOSE:

  • SPECIFICATIONS: Meets or exceeds the requirements of MIL-H-27267 and MIL-H-25579. See information bulletin IB-630 for TSO approvals.
  • CONSTRUCTION: Tube-Extruded tetrafluoroethylene. Reinforcement-Sixes-3 thru-12, one corrosion-resistant steel wire braid. Sizes-16Z thru-24Z, two corrosion-resistant steel wire braids.
  • PROOF PRESSURE: Hydrostatic pressure test at twice the rated working pressure, and test air underwater at maximum operating pressure.
  • APPLICATION: High-temperature aircraft hydraulic, ballistic, pneumatic, fuels, lube oils, coolants, solvents, and most missile fuels and oxidizers.
  • TEMPERATURE RANGE:

    -65°F to +450°F (-54°C to +232°C)

*Size-3 is not covered by MIL-H-25579 or MIL-H-27267, but manufactured and tested to intent thereof.

130 Stratoflex Medium Pressure Hose

Hose Application/Specifications:

130 HOSE:

  • HOSE CONSTRUCTION: Seamless buna-N compounded inner tube, reinforced with one fiber braid, one wire braid of high tensile steel wire, and cover of synthetic rubber-impregnated, oil resistant fiber braid. The cover is to be black in color.
  • MARKING: See Process Specification SF P-101-4
  • PROOF TEST: hydrostatic pressure test at two times recommended operating pressure.
  • APPLICATION: Medium pressure service with petroleum base fuel and oil.
  • TEMPERATURE RANGE:

    Oil or Fuel: -40°F to +300°F

    Oil or Fuel (Not Flexing): -65°F to +300°F

    Oil and Air Mixtures: -40°F to +250°F

156 Stratoflex Medium Pressure Hose

Hose Application/Specifications:

156 & 176 HOSE:

  • SPECIFICATIONS: Meets the dimensional requirements and meets or exceeds the functional requirements of MIL-H-83797 with an improved inner tube of HSP for better high-temperature resistance and essentially unlimited shelf life.* See information bulletin IB-1030 for TSO approvals.
  • CONSTRUCTION: Tube - Seamless HSP elastomer. Reinforcement-One and one-half corrosion-resistant steel wire braids.
  • APPLICATION: Medium pressure service with most petroleum base oils, JP fuels, aviation gasoline, MIL-L7808 and MIL-l-23699 lubricants, and many synthetic base fluids. Not affected by alcohols, coolants, and solvents common to the aerospace industry.
  • TEMPERATURE RANGE:

    - 65°F to +300°F (- 55°C to +149°C)

Stratoflex 156 hose is now produced with HSP innertube and thus 156 and 176 and assemblies are identical in qualification and performance.

171 Stratoflex High Pressure Hose

Appearance almost identical to 124 hose
Hose Application/Specifications:

171 HOSE:

  • SPECIFICATIONS: Meets or exceeds the requirements of AS1624 and AS1339 (formerly MIL- H-38360).
  • PROOF PRESSURE: Hydrostatic pressure test at twice the rated working pressure.
  • APPLICATION: High temperature and high pressure aircraft and missile hydraulic systems.
  • TEMPERATURE RANGE:

    -65°F to +400°F (-54°C to +204°C)

193 Stratoflex Low Pressure Hose

Hose Application/Specifications:

193 HOSE:

  • SPECIFICATIONS: Hose meets or exceeds the requirements of MIL-H-5593.
  • CONSTRUCTION: Tube-Seamless Buna-N. Reinforcement-one braid of high tensile fiber cord. Cover-Synthetic rubber.
  • IDENTIFICATION: LP-MIL-H-5593, date of manufacturer’s code marked on one side of hose. Stratoflex 193 marked on other side of hose . Yellow markings are repeated at least every 12 inches.
  • APPLICATION: Low pressure air and vacuum instrument systems. Vacuum service 20 Hg sizes -2 thru -6; 10 Hg sizes -8 and -10.
  • TEMPERATURE RANGE:

    -65°F to 165°F (-54°C TO +74°C)

  • EQUIVALENT P/N: Aeroquip 306

NOTE: Beech, Cessna and Piper used this hose for fuel, oil and hydraulic drains. Also, in some aircraft, 193 hose assemblies were used for engine fuel pressure and oil pressure.

2650 Stratoflex firesleeve

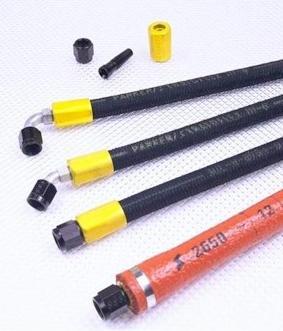

2650-12 firesleeve before and after dipping

2650 firesleeve after installation and clamping. Note small buckle on clamp. Much neater than ty-raps or safety wire and also resists moisture, fuel, oil and cleaning solvents from being absorbed between the hose and firesleeve (wicking).
Hose Application/Specifications:

2650 Red (orange) silicone fiberglass firesleeve:

  • SPECIFICATIONS: AS-1072
  • TEMPERATURE RANGE:

    -65°F to 450°F (-54°C TO +232°C), firesleeve only.
